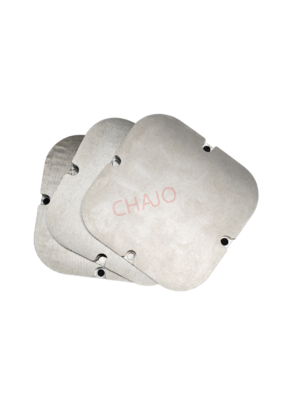

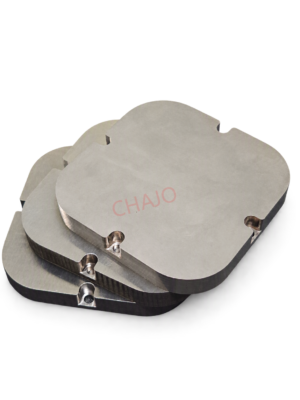

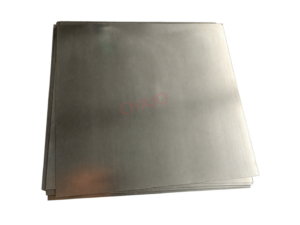

Nitinol Sheet

Nitinol sheet is a functional metal material with unique shape memory and superelastic properties, widely used in high-tech fields due to its excellent mechanical performance and biocompatibility. Our nitinol sheets are produced through strict vacuum melting, precision rolling, and controlled heat treatment processes to ensure consistent quality and stable functional properties.

Chemical Compostion,%/wt
Ni54.5-57.0C≤0.01
TiBalanceO≤0.03
Fe≤0.05Cr≤0.01
ItemSpecification
MOQ10 pcs
Thickness0.05mm – 20.0mm (customizable)
Width10mm – 300mm (customizable)
Length300mm – 1000mm (customizable)
SurfaceBright, Pickled,Pulished
StandardASTM F2063,GB/T 39985

Nitinol Sheet Main Properties

1.Shape Memory Effect: Can recover to its preset shape when heated to the transformation temperature (Aₛ: 0-100°C, customizable).

2.Superelasticity: Exhibits up to 8% reversible strain without permanent deformation, ideal for flexible structural components.

3.Biocompatibility: Non-toxic, non-irritating, and compatible with human tissue, suitable for medical implants and devices.

4.Corrosion Resistance: Excellent resistance to body fluids, seawater, and harsh industrial environments.

5.Fatigue Durability: High fatigue life under repeated bending and deformation, ensuring long-term service stability.

Thickness(mm)Tolerance(mm)Width(mm)Tolerance(mm)Length(mm)Tolerance(mm)
0.05-0.10±0.005100~300+10,0300~1000+15,0
0.10-0.50±0.08
0.50-1.00±0.15
1.00-2.00±0.20
2.00-4.00±0.25
4.00-6.00±0.35100~500+15,0300~1000+20,0
6.00-8.00±0.40
8.00-20.00±1.00

Application Fields

1.Medical Field:Embrcaing-type Bone Connectors,Compression Straddle Nails,Intramedullary Needs,Fastening Nails.

2.Power Field:Nitinol Sharp Memory Alloy Smart Washers,Isolation Swich Contact Spring Strips.

3.Construction Field:Structural Embedded Parts.

4.3C Industry:Hinges of Foldable Phones.
