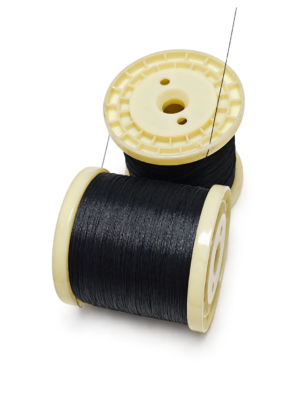

Nitinol Rope

Nitinol rope wire, is a multi-stranded Shape Memory Alloy (SMA) wire designed for high-strength, vibration reduction, and extreme durability. It combines the shape memory effect (SME) and superelasticity, making it an excellent choice for shock-absorbing, flexible, and high-performance applications in aerospace, defence, medical, and industral sectors.

These ropes retain the hallmark properties of Nitinol—namely, superelasticity and the shape memory effect—while also offering enhanced flexibility, precision control, and miniaturization similar to stainless steel wire ropes. The result is a high-performance wire solution ideal for demanding medical and industrial applications.

SpecificationDetails
MaterialNitinol (Ni 55%,Ti 45%)
Structure type1*2 / 1*3 / 1*7 / 7*7/1*19
LengthCustomizable
Tensile StrengthHigh tensile strength (up to 1,200 MPa)
Shape Memory EffectYes
Superelastic PropertyYes
CertificationISO 9001, ISO 13485, ASTM F2063
MOQ1.0 kg
Stock AvailabilityLarge quantities available
OEM ServiceYes
Lead TimeCustomizable (5-7days)

Nitinol Rope Mechanical Properties

ConditionSuperelastic
UTS (σᵦ), MPa [ksi]≥1000 [145.0]
Elongation (ε%)≥10
UPS (σload), MPa [ksi]≥350 [50.8]
Permanent set after 6% strain (%)≤0.3
Active Af (°C)<20

* All mechanical testing conducted at 22°C±2°C per ASTM F2516-18

Structure, Dimensions, and Tolerances of Nitinol Rope

StructureWire Diameter (mm)Diameter Range (mm)Diameter Tolerances (mm)
1*20.03 ≤ d < 0.050.060 ≤ Dn < 0.100±0.008
0.05 ≤ d < 0.080.100 ≤ Dn < 0.160±0.015
0.08 ≤ d < 0.150.160 ≤ Dn < 0.300±0.022
0.15 ≤ d < 0.250.300 ≤ Dn < 0.500±0.030
0.25 ≤ d ≤ 0.400.500 ≤ Dn ≤ 0.800±0.037
1*30.03 ≤ d < 0.050.065 ≤ Dn < 0.108±0.008
0.05 ≤ d < 0.080.108 ≤ Dn < 0.172±0.015
0.08 ≤ d < 0.150.172 ≤ Dn < 0.323±0.022
0.15 ≤ d < 0.250.323 ≤ Dn < 0.539±0.030
0.25 ≤ d ≤ 0.400.539 ≤ Dn ≤ 0.862±0.037
1*70.03 ≤ d < 0.050.090 ≤ Dn < 0.150±0.015
0.05 ≤ d < 0.080.150 ≤ Dn < 0.240±0.022
0.08 ≤ d < 0.150.240 ≤ Dn < 0.450±0.030
0.15 ≤ d < 0.250.450 ≤ Dn < 0.750±0.037
0.25 ≤ d ≤ 0.400.750 ≤ Dn ≤ 1.200±0.075
7*30.03 ≤ d < 0.050.194 ≤ Dn < 0.323±0.022
0.05 ≤ d < 0.080.323 ≤ Dn < 0.517±0.030
0.08 ≤ d < 0.150.517 ≤ Dn < 0.970±0.060
0.15 ≤ d ≤ 0.250.970 ≤ Dn ≤ 1.616±0.075
7*70.03 ≤ d < 0.050.270 ≤ Dn < 0.450±0.030
0.05 ≤ d < 0.080.450 ≤ Dn < 0.720±0.037
0.08 ≤ d < 0.150.720 ≤ Dn < 1.350±0.060
0.15 ≤ d ≤ 0.251.350 ≤ Dn ≤ 2.250±0.075
1*190.03 ≤ d < 0.050.150 ≤ Dn < 0.250±0.022
0.05 ≤ d < 0.080.250 ≤ Dn < 0.400±0.030
0.08 ≤ d < 0.150.400 ≤ Dn < 0.750±0.037
0.15 ≤ d ≤ 0.250.750 ≤ Dn ≤ 1.250±0.075

* Other variations in Tolerances can be discussed.

Surface Status
● Black oxide:Offers durability and resistance to corrosion.
● Light oxide:Colors range from golden yellow to brown, depending on the finishing process.
Packing
Spool: wire must be wound evenly on the spools, without breaks or tangles;
Fixed Length: Chajo can cut the wire to the customer’s requested length.
* Other packaging methods could be discussed with Chajo.
Application
● Orthopedic Cable System
● Orthodontic Instruments
● Spinal Cable Systems
● Snares
● Endoscopic
● Laparoscopic
● Basket
*For premium-grade multi-strand Nitinol wire, Chajo offers tailored solutions to meet the highest standards in the medical and industrial sectors.
