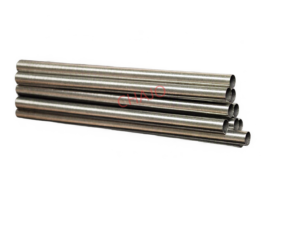

Nitinol Tube

Nitinol has two closely related and unique properties: shape memory and superelasticity. Our titanium-nickel nitinol tubes mainly use superelastic properties at room temperature, and the Af temperature is below 20°C.

Chemical Compostion,%/wt
Ni54.5-57.0C≤0.01
TiBalanceO≤0.03
Fe≤0.05Cr≤0.01

Nitinol tube Mechanical Properties:

ConditionSuperelastic
UTS (σᵦ), MPa [ksi]≥1000 [145.0]
Elongation (ε%)≥10
UPS (σload), MPa [ksi]≥350 [50.8]
Permanent set after 6% strain (%)≤0.3
Active Af (°C)<20

*Superelastic properties are measured per Test Method ASTM F2516 at room temperature (22±2℃)

*Applicable Standard: ASTM F2633

Applied Standard:

ASTM F2633 Wrought Seamless Nickel-Titanium Shape Memory Alloy Tube for Medical Devices and Surgical Implants

Surface Finish:

Outer surface: Oxide / Center-less-ground

Inner surface:  Etched / Oxide

Application:

Medical :Catheter / Needle / Stent / Dental Products / Nitinol Tube Components/Guide Tube.

Civil: Sensor Fasteners/Pipe Joints/Memory Alloy Rings.

Dimensional tolerances of Guide Tube:

ODOD TolerancesID Tolerances
OD≤0.3mm±0.005mm±0.010mm
0.3mm<OD≤1.5mm±0.010mm±0.010mm
1.5mm<OD≤2.5mm±0.010mm±0.020mm
2.5mm<OD≤3.5mm±0.020mm±0.020mm
3.5mm<OD≤10.0mm±0.020mm±0.020mm
10.0mm<OD±0.030mm±0.030mm

* Other variations in OD and ID can be discussed.
Dimensional tolerances of Stent Tube:

ODOD TolerancesWT Tolerances
0.3mm<OD≤0.6mm±0.010mm±0.010mm
0.6mm<OD≤1.5mm±0.013mm±0.013mm
1.5mm<OD≤2.5mm±0.015mm±0.015mm
2.5mm<OD≤3.5mm±0.015mm±0.015mm
3.5mm<OD≤5.0mm±0.020mm±0.025mm
5.0mm<OD≤8.0mm±0.020mm±0.025mm
OD>8.0mm±0.030mm±0.030mm
* Other variations in OD and ID can be discussed.
